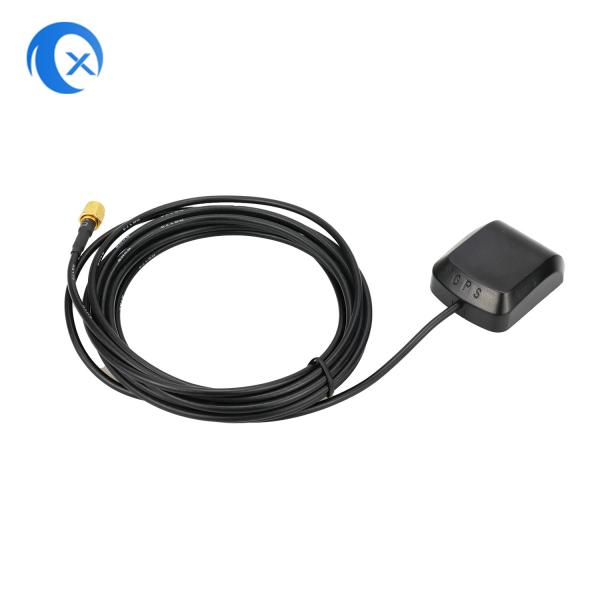

External active GPS Antenna 26dBi magnetic mount with 5 Meters RG174 cable SMA Connector
Types of Tengxiang's GPS navigation antennas:
1. GPS, Beidou, and GNSS antennas
2. Passive GPS antennas
3. Active GPS antennas
4. Integrated GPS antennas
5. External GPS antennas
6. Patch antennas
Electrical Specifications of GPS navigation antenna
| Frequency range(Hz) | 1575.42 MHz |
| Gain (dB) | 26-28 |
| VSWR | ≤2.0 |
| Input impedance(Ω) | 50 |
| Polarization | Linear |
| Lightning Protection | DC Ground |
| Input connector type | RPSMA Male or Requested |
| Mechanica Specifications |
| Dimensions(mm) | |
| Openrating temperature(℃) | —45～85 |
| Radome color | Gray, Black, White |
What is a GPS navigation antenna?
A GPS antenna is a radio frequency antenna that provides connectivity with the Global Positioning System, a proprietary, satellite-based radio navigation system designed, created, and owned by the United States Government. When appropriately connected to a GPS transceiver, the GPS antenna is able to transmit and receive the specific radio frequency signals needed for a GPS device to perform its time, location, and navigation functions. In performing this function GPS antennas become the key point of interaction between the satellites which form the GPS Space Segment and the GPS User segment (receivers). The output of the GNSS or GPS antenna is fed into a GNSS or GPS receiver that can compute the position.
GPS Antenna vs. Receiver
A GPS receiver is a device that locates multiple satellites, calculates their distances from one another, and then calculates its own distance from those satellites. This process of triangulation is what makes GPS receivers so accurate. The GPS antenna is responsible for converting and amplifying signals generated by the receiver, as well as interpreting signals from the satellite network.
Most GPS receivers include a small omnidirectional antenna.
GPS antenna applications
The uses of GPS technology span a multitude of industries including:
● Marine
● Agriculture
● Transportation and Logistics
● Aviation
● Defense
● Emergency Services
● Infrastructure
● Security
Products show:
Why choose us?
1. Hundreds of antenna products for optional, they are used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
2. We provide a customized solution for your requirements for antennas, coaxial cables, and plastic parts. With our in-house design, R&D, testing, and manufacturing.
3. Professional and experienced employees, and auto-assembly lines in the factory, no worries about the production capability.
4. By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provides excellent services.
